Available for viewing, this higher capacity hose-reel irrigation machine from the NewEng FerboRain range is manufactured to our specifications in Italy, and were previously supplied by us as Wright Rain/Idrofoglia Rainmakers.

GE 110-540

Typically this machine can apply about 64m³/h through a 28mm raingun nozzle at 4.5 bars, requiring a connection pressure of about 9 bars depending on local conditions. When operated at 72 metre spacing between runs, a full length run in 11 hours will provide a nominal 18mm application of water; equivalent to an irrigation capacity of 96 acre inches per week, assuming two such runs per day.

Specifications:-

  • 540 metres of 110mm dia. black med. density poly hose with 3 year guarantee.
  • Galvanised chassis, pipework and frame, painted drum and mechanical parts.
  • Operating pressure gauge.
  • High efficiency partial flow turbine directly mounted on the gearbox.
  • Automatic, adjustable unwinding over-run brake.
  • PTO splined gearbox input shaft and manual winding handle.
  • Automatic gearbox disengagement at end of rewind or hose miss-coil.
  • Evo4 “push and go” intuitive controller complete with pressure switch, solar panel, rechargeable battery and flashing warning beacon.
  • Leadscrew hose layering device.
  • Hydraulically operated staker legs and raingun trolley lifting.
  • Hydraulically operated turntable.
  • Twin distributor lever valves and quick connect tractor hydraulic hoses positioned behind the towing eye.
  • Adjustable height extended drawbar towing eye.
  • Adjustable lateral staker legs mounted behind the drawbar towing eye.
  • Mechanical drawbar jack.
  • Adjustable slow closing diaphragm inlet shutdown valve.
  • Two wheel fixed axle, 400/60-15.5 pr14 6F tyres.
  • Galvanised 3 wheel adjustable width asymmetric off-set raingun trolley with stabiliser weight, centre pull raingun trolley optional at reduced price, with rigid towing bar.
  • Single pinion and crown wheel drum drive.
  • Galvanised twin inlet connection pipe with female lever couplers and stop end.
  • 7 metre flexible layflat connection hose with male lever coupler on machine end and 4” coupler of your choice on the supply end.
  • In-line supply hose filter.
  • Komet Twin 140/Ultra Vari-angle raingun complete with a set of 3 nozzles.

 2024 Nett Price (terms and conditions apply)     SOLD ex our works, plus VAT

Click on the images below to enlarge.

Please Contact us to discuss your requirements.

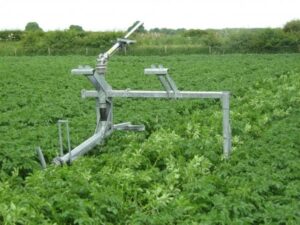

Asymmetric off-set raingun trolley
Asymmetric off-set raingun trolley

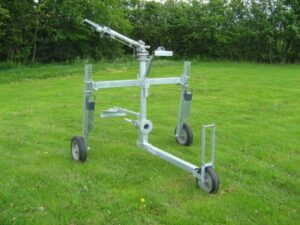

Centre pull raingun trolley
Centre pull raingun trolley

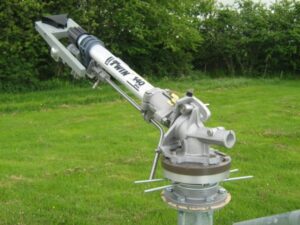

Komet Twin140/Plus Vari-angle raingun
Komet Twin140/Plus Vari-angle raingun

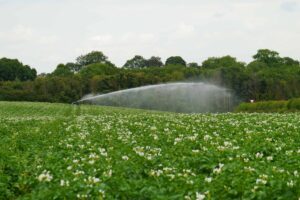

Irrigating potatoes

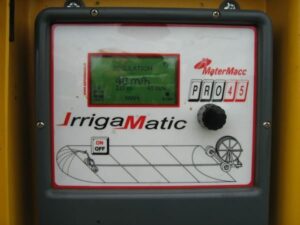

Pro45 intuitive controller
Pro45 intuitive controller
